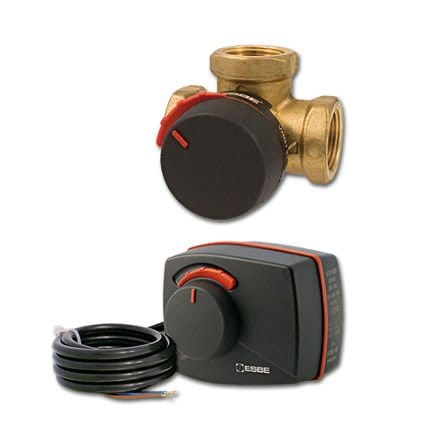

3WW motor driven mixing valve
3-way diverter valve with 230 V electric motor drive is used in closed solar and heating circuits for hydraulic switching or locking. Actuator with 2-point activation. Suitable for heating and solar circuits as well as drinking water. The valve can also be installed mirrored. The flow path can be modified by changing the position of the pins for the direction of rotation of the motor on the circuit board by 90°.
Very low leak rate
Runtime only 120 s (90°)
Available with different nominal widths and thread sizes
Actuator
Power supply: 230 V~ (+/- 10 %), 50 Hz
Power consumption: 5 VA
Ingress protection: IP 41
Protection class: II
Ambient temperature: -5 … +55 °C
Runtime: 120 s, 90°
Torque: 6 Nm
Electrical connection: 3 x 0.5 mm², I = 1.5 m
3-port mixing valve
Fluid: water, glycol < 50 %
Connection thread: Rp 3/4″/Rp 1″/Rp 1″
Max. differential pressure: diverting: 2 bar / mixing: 1 bar
Closing pressure: 2 bar
Flow rate coefficient Kv/Kvmin, A-AB: 100
Leak rate: diverting: 0.02 % / mixing: 0.05 % (Δp = 1 bar)
Kvs: 6,3 m³/h/6,3 m³/h/10 m³/h (Δp = 1 bar)
Mixer housing: dezincification-resistant brass DZR
Valve inlet: abrasion-resistant brass
Shaft and bushing: PPS composite
O-rings: EPDM
Nominal size: DN20/DN25/DN25
Fluid temperature: -10 … +110 °C (long-term) / 130 °C (short.term)
Torque: (bei Nenndruck) < 3 Nm
Nominal pressure: PN10
