Pressure / Flow sensors

Digital and analogue Pressure / Flow sensors

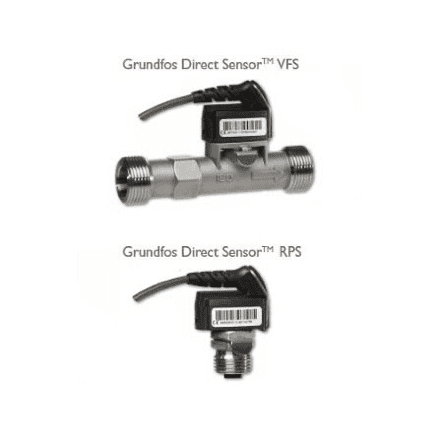

VFS Grundfos Direct Sensors™ measure the temperature and the flow rate with a single measuring element. Based on the vortex principle, the sensor measures the flow rate by means of the pressure differences caused by the fluid turbulences occurring at the insert. Grundfos Direct Sensors™ can be used in aggressive media as well as in domestic water and thus are ideal for measuring the flow rate and the heat quantity in solar thermal and heating systems.

The digital VFD Grundfos Direct Sensors™ measure the temperature and the flow rate with a single measuring element and then transmit the measured values directly via the RESOL VBus® protocol. Grundfos Direct Sensors™ can be used in aggressive media as well as in domestic water and thus are ideal for measuring the flow rate and the heat quantity in solar thermal and heating systems. VFD 1 – 12 l are designed for systems with low flow rates. VFD 2 – 40 l are designed for systems with higher flow rates. The VFD 2 – 40 l fast is ideal for DHW exchange modules due to its high-speed reaction time.

RPS Grundfos Direct Sensors™ measure the temperature and the relative pressure with a single measuring element. They can be optimally used for leakage and overpressure monitoring. Grundfos Direct Sensors™ can be used in aggressive media as well as in domestic water and thus are ideal for the application in solar thermal and heating systems.

The digital RPD Grundfos Direct Sensors™ measure the temperature and the relative pressure with a single measuring element and then transmit the measured values directly via the RESOL VBus® protocol. They can be optimally used for leakage and overpressure monitoring. Grundfos Direct Sensors™ can be used in aggressive media as well as in domestic water and thus are ideal for the application in solar thermal and heating systems.

Brand:
Senzori-pritiska-protoka
Senzori-pritiska-protoka
  • Analogue and digital sensor output
  • Flow rate monitoring and pressure monitoring

Material: stainless steel
Maximum operation temperature:
Long-term: 100 °C
Short-term: 120 °C
Length: 110 mm (VFS/VFD)
Connection thread: 3/4″ ET (VFS/VFD), 1/2″ ET (RPS/RPD)
Depth of thread engagement: 12 mm (RPS/RPD)

Solar systems, heating systems, cooling systems.
