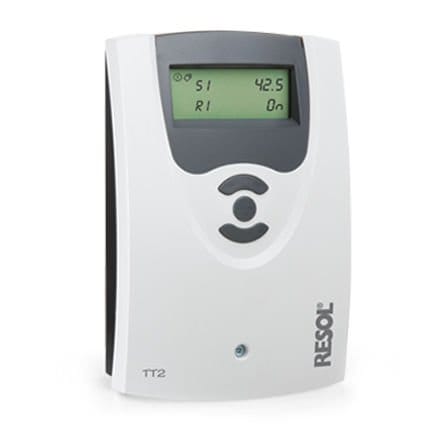

TT2 Thermostat controller

The TT2 Thermostat controller is equipped with two high-current relays to which an electric immersion heater of up to 3.6 kW (230 V~) / 1.8 kW (115 V~) can be connected. Thus, the TT2 manages the time and temperature control of the electric backup heating for a DHW store. The rapid heat-up function makes for extra comfort. A wireline remote control with an integrated LED enables a comfortable operation of the rapid heat-up function.

Thermostat controller for electric backup heating


Direct connection of an electric immersion heater up to
3.6 kW (230 V~) / 1.8 kW (115 V~)
Time and temperature control of the electric backup heating
Rapid heat-up function with optional remote control activation
Intuitive operating concept
Energy-efficient switch-mode power supply
Thermosiphon systems

Inputs: 1 Pt1000 temperature sensor, 1 input for RCTT Remote control
Outputs: 2 high-current relays for electric immersion heater
Switching capacity: 16 (3) A 240 V~ (high-current relay)
Power supply: 100 – 240 V~ (50 – 60 Hz)
Supply connection: type Y attachment
Standby: 0,44 W
Mode of operation: type 1.C action
Rated impulse voltage: 2,5 kV
Functions: time-controlled thermostat function, DHW heating with rapid heat-up
Housing: plastic, PC-ABS and PMMA
Mounting: wall mounting, mounting into patch panel is also possible
Indication/Display: LC display, multi-functional combined display with pictograms, two 2-digit text fi elds and two 4-digit 7-segment displays
Operation: by 3 push buttons at the front of the housing
Ingress protection: IP 20 / DIN EN 60529
Protection class: II
Ambient temperature: 0 … 50 °C
Pollution degree: 2
Dimensions: 172 x 110 x 46 mm
