DeltaTherm® PV
The DeltaTherm® PV immersion heater controller detects excess current, e.g. produced by PV systems, calculates the energy available and redirects it to an electric heater. Thus, excess PV current can be directly converted into thermal energy and stored. By means of a Datalogger or the Communication module, the self-generated current can be visualised via the www.VBus.net Internet portal.
incl. sensor module, 3 current sensors and 1 Pt1000 sensor (FRP6)
Using excess current for heating a water store
Electric heater of up to 3 kW, variable and grid compliant
Direct control of the electric immersion heater in the store
Can be fitted to all stores equipped with an electric immersion heater
Reliable household power priority
Economical solution for using excess current
DeltaTherm® E sensor
Inputs: 3 current inputs for CT, 3 voltage inputs
Power supply: 100 – 240 V~ (50 – 60 Hz)
Supply connection: type Y attachment
Standby: < 1 W
Rated impulse voltage: 2,5 kV
Data interface: VBus®
Functions: energy measuring unit
Housing: plastic, PC (UL 94 V-0)
Mounting: DIN rail in the domestic distribution board
Indication/Display: 2 operating control LEDs
Ingress protection: IP 20 / DIN EN 60529
Protection class: I
Ambient temperature: 0 … 40 °C
Dimensions: 71 x 90 x 58 mm

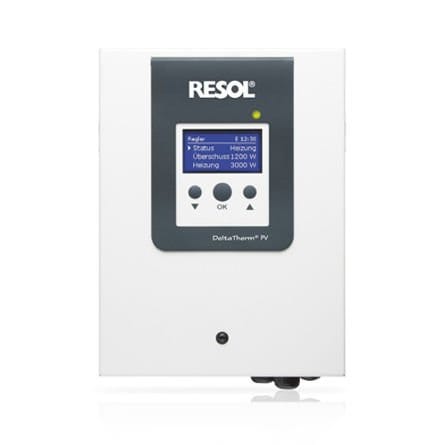

DeltaTherm® PV
Inputs: 2 Pt1000 temperature sensors, 2 digital switching inputs, 0-10 V control input
Outputs: 2 digital switching outputs, variable power control up to 3 kW (electric immersion heater)
Power supply: 100 – 240 V~ (50 – 60 Hz)
Supply connection: type Y attachment
Data interface: VBus®
Functions: controlling an electric heater for using excess PV current for heating a store
Housing: sheet metal, powder-coated
Mounting: wall mounting
Indication/Display: text display
Operation: buttons
Ingress protection: IP 0 / DIN EN 60529
Protection class: I
Ambient temperature: 0 … 40 °C
Dimensions: approx. 226 x 302 x 84 mm
