DeltaTherm® PHM

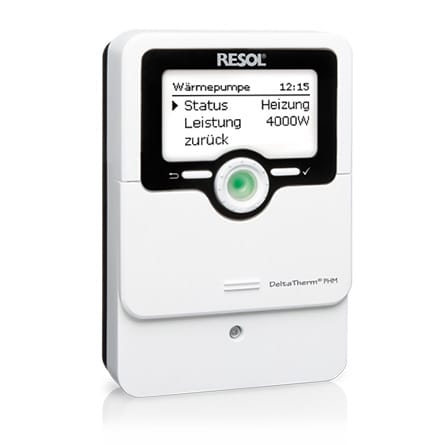

The DeltaTherm® PHM is the ideal solution for using excess PV current for the control of different loads. Heat pumps, electric immersion heaters, and charging stations for electric vehicles can be controlled as needed. All the while household power has absolute priority. Each load can also be supplied with mains current on a time-controlled basis. Furthermore, the DeltaTherm® PHM measures the electric loads at the energy meter which can be visualized via VBus.net.

incl. measuring unit, 3 current sensors and 3 Pt1000 sensors (FRP6)

Brand:
DeltaTherm_PHM_445x445
DeltaTherm_PHM_445x445

Increase in self-consumption
Reduction of heating costs
Control of a heat pump
Control of a wallbox
Control of up to 3 electric immersion heaters (via auxiliary relays)
Household current priority
Can be used with all PV systems
Time-controlled backup heating (with mains current)

DeltaTherm® E sensor
Inputs: 3 current inputs and 3 voltage inputs for SW16 current sensors
Power supply: 100 – 240 V~ (50 – 60 Hz)
Supply connection: Y
Standby: 1.22 W
Rated impulse voltage: 1,0 kV
Data interface: VBus®
Functions: energy measuring unit
Housing: plastic, PC (UL 94 V-0)
Mounting: DIN rail in the domestic distribution board
Indication/Display: 2 operating control LEDs
Ingress protection: IP 20 / DIN EN 60529
Protection class: II
Ambient temperature: 0 … 40 °C
Pollution degree: 2
Dimensions: 71 x 90 x 58 mm

DeltaTherm® PHM
Inputs: 5 Pt1000 temperature sensors (2 of them convertible to switch)
Outputs: 3 electromechanical relays, 2 potential-free extra-low voltage relays and 1 PWM output (convertible to 0-10 V)
Relay outputs:
1 (1) A 240 V~ (electromechanical relay)
1 (1) A 30 V⎓ (potential-free relay)
Total switching capacity: 3 A 240 V~
Power supply: 100 – 240 V~ (50 – 60 Hz)
Supply connection: X
Standby: < 1W Mode of operation: Typ 1.B.C Rated impulse voltage: 2,5 kV Data interface: RESOL VBus®, MicroSD card slot VBus® current supply: 35 mA Functions: measurement and balancing of the current fl ow at the energy meter, control of a heat pump, control of up to 3 electric loads (e.g. immersion heaters), control of a wallbox Housing: plastic, PC-ABS and PMMA Mounting: wall mounting, mounting into patch panels is possible Indication/Display: full graphic display, operating control LED (Lightwheel®) and background illumination Operation: 4 buttons and 1 adjustment dial (Lightwheel®) Ingress protection: IP 20 / DIN EN 60529 Protection class: I Ambient temperature: 0 ... 40 °C Pollution degree: 2 Dimensions: 110 x 166 x 47 mm
