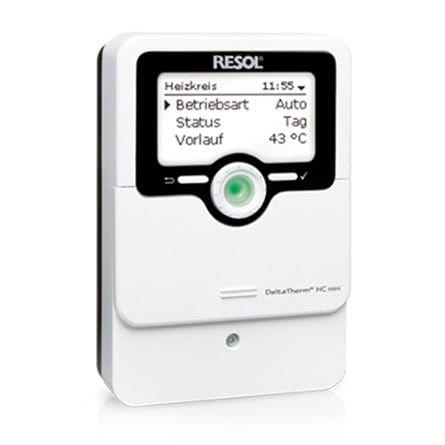

DeltaTherm® HC mini Heating controller
The DeltaTherm® HC mini offers a compact and user-friendly solution for simple heating systems. It can control a weather-compensated heating circuit and its backup heating demand. Additionally, there’s a choice of 5 different operating modes, a boiler protection option and a night correction.
Due to the commissioning menu and the 4 pre-configured basic systems, configuration is quick and easy.
The chimney sweeper function and the holiday mode can be activated by pressing a single button.
- 4 pre-configured basic systems
- 12 pre-programmed schemes for the temperature controls classes II, III, V, VI, VII and VIII
- 4 relay outputs (incl. 1 potential-free extra-low voltage relay)
- 5 inputs for Pt1000 temperature sensors
- 5 operating modes, boiler protection, room thermostat and night correction
- Holiday mode, chimney sweeper function and screed drying function via microbuttons
- Data logging, storing, easy transfer of controller adjustments prepared and firmware updates via SD card
- Modulating heating control with 0-10 V boiler control
- Weather-compensated control with room influence or demand-based room control with up to 3 room temperature sensors
- Remote access with a room control unit or the VBus®Touch HC App
Inputs: 5 inputs for Pt1000 temperature sensors (1 of them can be converted to Switch and one of them to RTA)
Outputs: 3 semiconductor relays, 1 potential-free relay, 1 PWM output, 1 0-10 V output
PWM frequency: 512 Hz
PWM voltage: 10.8 V
Switching capacity:
1 (1) A 240 V~ (semiconductor relay)
1 (1) A 30 V ⎓ (potential-free relay)
Total switching capacity: 3 A 240 V~
Power supply: 100 – 240 V~ (50 – 60 Hz)
Supply connection: type Y attachment
Standby: 0.63 W
Temperature controls class: VIII
Energy efficiency contribution: 5 %
Mode of operation: type 1.B.C.Y action
Rated impulse voltage: 2.5 kV
Data interface: RESOL VBus®, MicroSD card slot
VBus® current supply: 60 mA
Functions: weather-compensated heating circuit control, backup heating, room thermostat, chimney sweeper function, screed drying function
Housing: plastic, PC-ABS and PMMA
Mounting: wall mounting, mounting into patch panels is possible
Indication/Display: Full graphic display, control lamp (Lightwheel®)
Operation: 4 push buttons and 1 adjustment dial (Lightwheel®)
Ingress protection: IP 20/DIN EN 60529
Protection class: I
Ambient temperature: 0 … 40 °C
Pollution degree: 2
Dimensions: 110 x 166 x 47 mm
This controller fulfills the requirements of the following ErP temperature controls classes: I and III
DeltaTherm_HC_mini.kon2s 79.4KB
firmware-HC_mini-1.01 340.4KB
