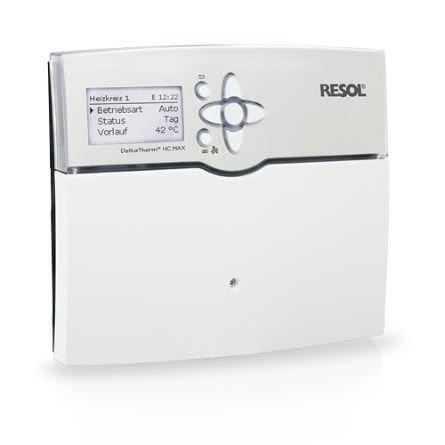

DeltaTherm® HC MAX Heating controller

The DeltaTherm® HC MAX can control up to 4 weather-compensated heating circuits, the DHW loading and the backup heating demand for both. Additional DHW functions such as circulation or thermal disinfection, and the effi cient implementation of further heat sources are possible. With extension modules, further heating circuits can be controlled. Due to the fl exible application and extension possibilities, the heating controller is also ideal for larger objects such as apartment houses, residential homes and industrial buildings.

Brand:
DeltaTherm_HC_MAX_445x445
DeltaTherm_HC_MAX_445x445
  • Up to 5 EM extension modules can be connected via the RESOL VBus® (45 sensors and 39 relays in total), up to 7 weather-compensated heating circuits
  • 2 inputs for digital Grundfos Direct Sensors™
  • 2 inputs for analogue Grundfos Direct Sensors™
  • Screed drying function
  • Data logging, storing, easy transfer of controller adjustments prepared and firmware updates via SD card
  • Cooling over the heating circuit with condensation detection by means of a dew point switch
  • Modulating heating control with 0-10 V boiler control
  • Weather-compensated control with room infl uence or demand-based room control with up to 5 room temperature sensors per heating circuit
  • Remote access with a room control unit or the VBus®Touch HC App

Inputs: 12 Pt1000, Pt500 or KTY temperature sensor inputs (can optionally be used for remote controls, operating mode switches or potential-free switches), 3 impulse inputs for V40 flowmeters, 1 input for a FlowRotor, 1 CS10 solar cell, 4 Grundfos Direct Sensors™ (2 x analogue, 2 x digital*)
Outputs: 14 relays, 13 of them semiconductor relays for pump speed control, 1 potential-free relay and 4 PWM outputs (convertible to 0-10 V signal outputs)
PWM frequency: 512 Hz
PWM voltage: 10,5 V
Switching capacity: 1 (1) A 240 V~ (semiconductor relay)
4 (2) A 24 V⎓ / 240 V~ (potential-free relay)
Total switching capacity: 6,3 A 240 V~
Power supply: 100 – 240 V~ (50 – 60 Hz)
Supply connection: type Y attachment
Standby: 0,83 W
Temperature controls class: VIII
Energy efficiency contribution: 5 %
Mode of operation: type 1.B.C.Y action
Rated impulse voltage: 2,5 kV
Data interface: RESOL VBus®, SD card slot
VBus® current supply: 35 mA
Functions: screed drying, weather-compensated heating circuit control, backup heating, DHW heating with priority logic, circulation, thermal disinfection, heat quantity measurement, optional functions such as solid fuel boiler, return preheating, etc.
Housing: plastic, PC-ABS and PMMA
Mounting: wall mounting, mounting into patch panels is possible
Indication/Display: full graphic display
Operation: 7 push buttons
Ingress protection: IP 20 / DIN EN 60529
Protection class: I
Ambient temperature: 0 … 40 °C
Pollution degree: 2
Dimensions: 253 x 200 x 47 mm
