CompactPITCH XM-F

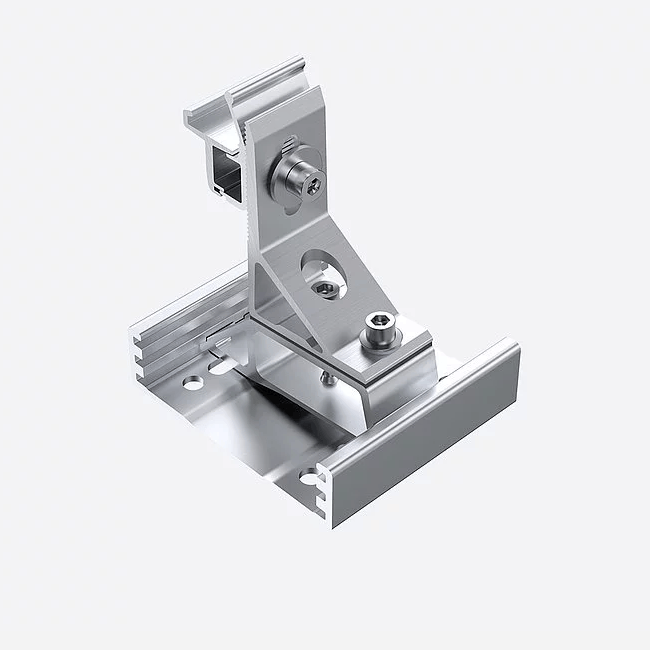

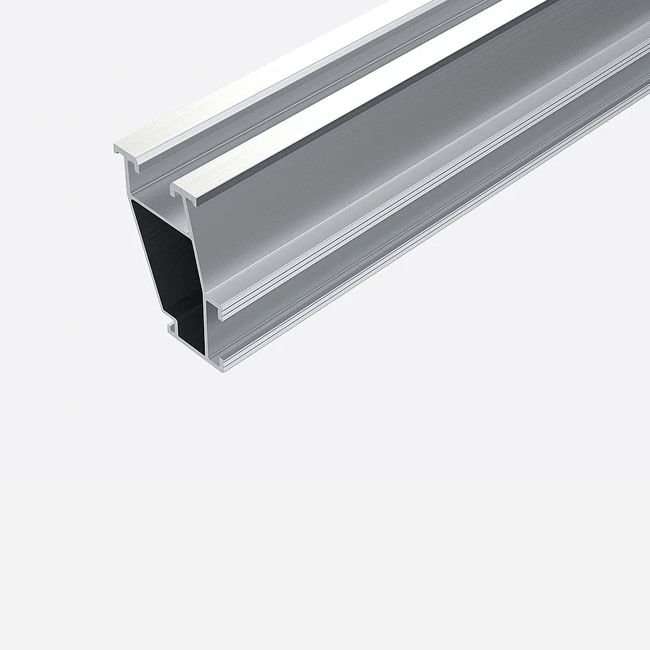

The XM-F system is a new type of roof hook design that is particularly strong due to the optimized force transmission into the rafters. This makes installation in areas with high snow loads much easier to realize. In zones with lower snow loads, the number of roof hooks can be significantly reduced by combining them with the X60 rail, thus saving installation time and costs.

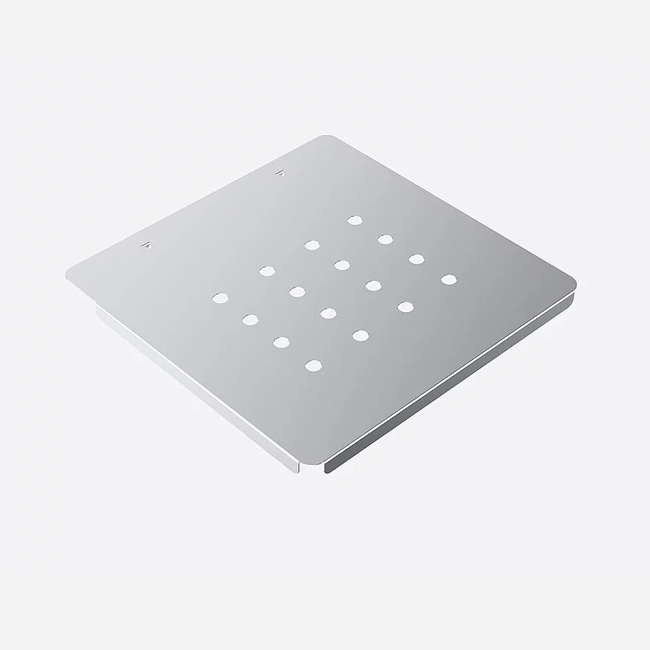

AEROCOMPACT’s Pierce Labyrinth Seal allows flexible positioning of the XM-F roof hook on the XM-FC cover plate. The roof hook can therefore always be mounted centrally on the rafter, regardless of the tile position, guaranteeing optimal force transmission. This results in an enormous load-bearing capacity of the roof hook and, depending on the area of application and system combination, leads to a significant reduction of fastening points.
Cost-effective due to savings on roof hooks
Pre-assembled assembly
Mounting always on rafters, thus highest load capacities possible
Up to 40 percent time saving
Highest load capacity
Adaptable to almost any tile shape
Flexible in application
Pitched roofs
AC_XM_F_Kompatibilität_Dachziegel_202412_EN 94.2KB
