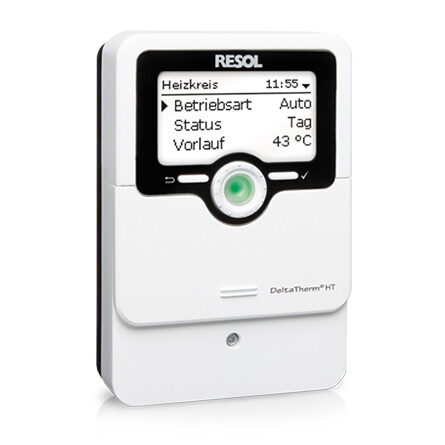

Heating circuit controller Deltatherm® HT

The DeltaTherm® HT is a compact and user-friendly solution for simple heating systems and offers weather-compensated control with room influence or demand-based room control with 1 room temperature sensor. If a central outdoor sensor unit is used, several controllers can use the outdoor temperature value – this requires the installation of only 1 outdoor temperature sensor. Additionally, there’s a choice of 5 different operating modes and a night correction.

Inputs: 4 inputs for Pt1000 temperature sensors (1 of them can be converted to room thermostat (switch)), 1 input for remote control (RTA) or operating mode switch (BAS)
Outputs: 3 semiconductor relays, 1 potential-free extra-low voltage relay, 1 x PWM output, 1 x 0-10 V output
PWM frequency: 512 Hz
PWM voltage: 10,8 V
Switching capacity:
1 (1) A 240 V~ (semiconductor relay)
1 (1) A 30 V= (potential-free relay)
Total switching capacity: 3 A 240 V~
Power supply: 100 – 240 V~ (50 – 60 Hz)
Supply connection: type Y attachment
Standby: 0,63 W
Mode of operation: type 1.B.C.Y action
Rated impulse voltage: 2.5 kV
Data interface: RESOL VBus®, MicroSD card slot
Functions: weather-compensated heating circuit control, room thermostat, chimney sweeper function, screed drying function, holiday mode
Housing: plastic, PC-ABS and PMMA
Mounting: wall mounting, also suitable for mounting into patch panels
Indication/Display: full graphic display, operating control LED (Lightwheel®)
Operation: 4 buttons and 1 Lightwheel®
Ingress protection: IP 20 / DIN EN 60529
Protection class: I
Ambient temperature: 0 … 40 °C
Pollution degree: 2
Dimensions: 110 x 166 x 47 mm

Pre-programmed basic system
4 relay outputs (incl. 1 potential-free extra-low voltage relay)
4 inputs for Pt1000 temperature sensors
5 operating modes, room thermostat and night correction
Chimney sweeper function, screed drying function and holiday mode via microbuttons
Data logging, storing, easy transfer of controller adjustments prepared and firmware updates via MicroSD card
Weather-compensated control with room influence or demand-based room control with 1 room temperature sensor
Remote access with a room control unit
Function for using a central outdoor sensor unit
