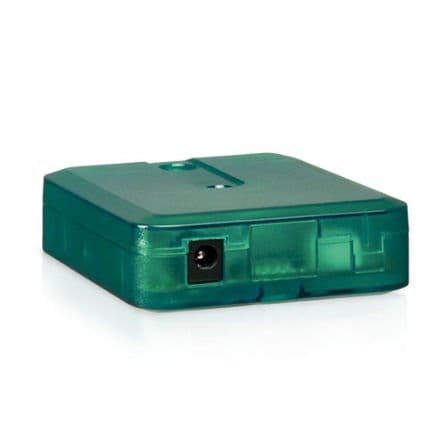

The VBus®-Repeater amplifies the VBus® signal of a controller and supplies a current of 200 mA in total to modules connected.
VBus® signal amplifier


Connect multiple modules to one controller
Maximum current supply of 200 mA
VBus® cable extension of up to 150 m in total possible

Inputs: 1 RESOL VBus® master (controller)
Outputs: 3 RESOL VBus® devices (modules, e.g. AM1, SD3, 200 mA in total)
Power supply:
Input voltage of mains adapter: 100 … 240 V~ (50 … 60 Hz)
Input voltage of repeater:)
12 V / 0.5 A5.5 × 2.5 mm
Housing: plastic
Ingress protection: IP 20 / DIN EN 60529
Dimensions: 95 x 70 x 25 mm
